Interested in Engine and Powertrain Testing but don’t know what Gantner products are best for you? Our engineers can quickly help you personalize a Q.series X DAQ system around your needs.
An internal combustion engine (ICE) needs continuous, long-term testing to ensure its safety and suitability. To accurately characterize engine performance at different working conditions, speed, torque, temperature, and vibration parameters must be measured with varying sample rates. Continuous testing around-the-clock is putting stringent uptime requirements on the data acquisition system. The Q.series X’s accuracy, flexibility, and reliability make it the data acquisition system of choice for the world‘s leading engine manufacturers and test facilities.
Need Expert
Results Fast?
Interested in Engine and Powertrain Testing but don’t know what Gantner products are best for you? Our engineers can quickly help you personalize a Q.series X DAQ system around your needs.
NAVIGATION
A dynamometer is a device that measures the force, torque, or power, giving a full breakdown of the engine’s performance. More specifically, a dyno test evaluates the measure of torque and rotational speed, giving a reading that indicates the amount of power in the engine.
A real-world testing method to get accurate power results; Vehicle components, such as the transmission and drive axle, both require a certain amount of power to operate, which results in parasitic power loss from the engine as measured at the flywheel during the engine dynamometer testing.
Hot testing is the best way to obtain all the information needed for checking the engine’s performance to achieve type approvals and certifications. Typical measurements include engine oil pressure and temperature, combustion air and exhaust gas temperature, engine speed, useful power, and torque.
Thermal shock tests assess the interaction between an internal combustion engine operation, a range of cooling and lubrication system thermal cycling scenarios, and the wear and thermal deformation of individual engine components.
Transmission durability tests allow the durability and performance of gearboxes at significant mileage to be tested much faster than if conducted via on-road tests. Due to their repeatability, these tests allow comparing various design solutions.
Why Gantner Instruments
01
Flexible Mixed-Signal Data Acquisition
Q.series X is a mixed-signal, multi-channel data acquisition solution offering a versatile range of I/O modules. You can measure voltage, current, temperature, torque, strain, vibration, counters, and more. With this maximum sensor flexibility, the DAQ system can be easily adapted to the demanding requirements of EV powertrain testing.
Need Expert Results Fast?
Our engineers can quickly help you personalize a DAQ system for your Engine and Powertrain Testing needs.
02
Minimal Signal-to-Noise Ratio
All Q.series measurement modules come with 1500 VDC channel-to-channel, channel-to-supply, and channel-to-bus galvanic isolation. In addition, each module comes with pre-engineered conditioning functions like linearization and filtering. The modules are capable of sample rates up to 100 kHz, with each channel having its own 24-bit ADC.
Minimal Signal-to-Noise Ratio
Learn more about our outstanding signal quality and galvanic isolation.
03
Fully Configurable Data Loggers
Engine testing generates a lot of data with varying sample rates. Mixed-signal, multi-frequency data logging ensures only the data you need is saved, avoiding unnecessary data storage overhead.
Need Expert Results Fast?
Our engineers can quickly help you personalize a DAQ system for your Engine and Powertrain Testing needs.
04
Easy Integration
Easy-to-use APIs, modern publish-subscribe protocols, and various Fieldbus interfaces, like CAN, EtherCAT, and PROFINET, make it simple and easy to integrate Q.series X into any supervisory control and data acquisition system. Plugins & drivers for LabVIEW, MATLAB, and Python, among others, enable advanced data analysis and reporting.
Need Expert Results Fast?
Our engineers can quickly help you personalize a DAQ system for your Engine and Powertrain Testing needs.
05
No Downtime
Q.series X facilitates easy module installation and maintenance. The ‘Hot Swap’ feature allows for simple expansion, modification, and service without the need to shut down power. When replacing a faulty module, there is no need for manually re-configuring the module or the system setup.
Need Expert Results Fast?
Our engineers can quickly help you personalize a DAQ system for your Engine and Powertrain Testing needs.
06
1500V High-Voltage Galvanic Isolation

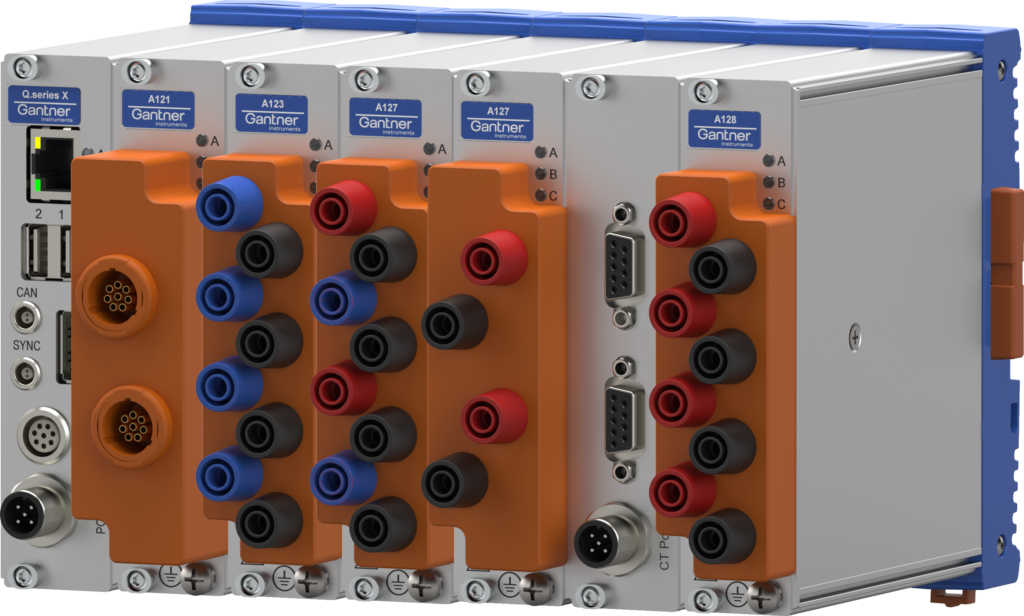

Q.series X high-voltage isolation measurement modules are suitable for voltage, current, RTD, thermocouple, IEPE, and strain gage sensors sampling up to 100 kHz. All high-voltage isolation modules include a minimum of 1500 VDC channel-to-channel, channel-to-supply, and channel-to-bus galvanic isolation.
1500V High-Voltage Galvanic Isolation
Learn more about High-Voltage Testing for Electric Vehicles and Batteries.
Who trusts Gantner for Combustion Engine & Powertrain Testing?
Application Examples
Gantner’s cutting-edge DAQ technology is trusted globally for applications in the mobility, aerospace, civil engineering, and energy sectors. Choose from the following industry examples to discover the most versatile DAQ on the market.
AE
Measuring temperature in components of Hybrid Electric Drives
For our client, a well-known German engineering and technology market leader, we delivered the testing application solution for temperature measurements of components and new materials of hybrid electrical drives.
